# Critical CPC Section 422 Requirements: Water Supply, Drainage, and Safety Code Violations Exam Candidates Must Know

The California Plumbing Code Section 422 represents one of the most heavily tested areas of the C-36 plumbing exam. This comprehensive section governs water supply systems, drainage requirements, and critical safety protocols that every licensed plumber must understand. Whether you're preparing for Part 2 (Water Supply and Distribution Systems) or Part 3 (Drainage Systems), mastering Section 422 requirements is non-negotiable for exam success.

In this guide, we'll break down the essential elements of CPC Section 422 that exam candidates must know, highlight common code violations that appear on tests, and provide practical study strategies to ensure you're fully prepared.

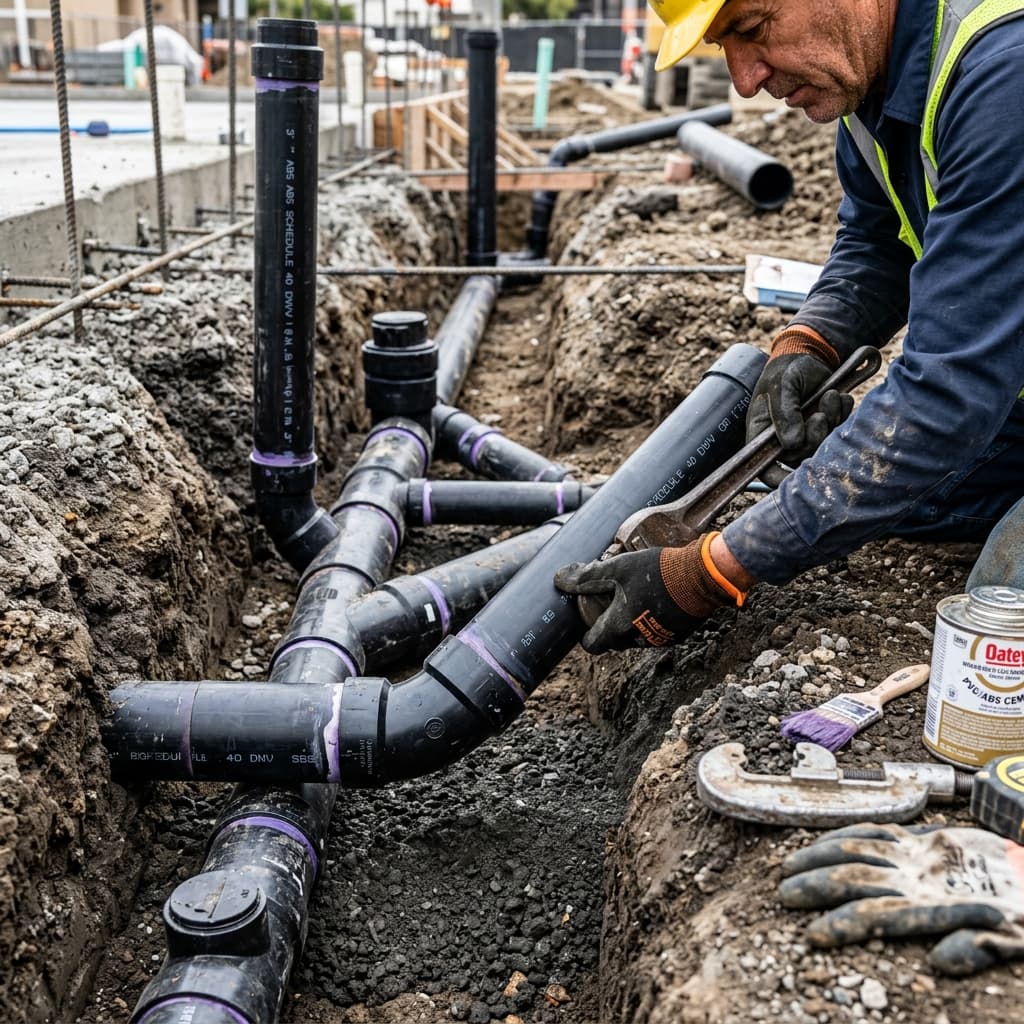

Understanding CPC Section 422: The Foundation

California Plumbing Code Section 422 serves as the backbone of water supply and drainage safety standards throughout California. This section doesn't stand alone—it works in conjunction with other critical sections like CPC Section 308 (Materials) and CPC Section 606 (Backflow Prevention), but Section 422 uniquely focuses on the operational and safety aspects of these systems.

What Section 422 Actually Covers

Section 422 is subdivided into several critical components:

• Water supply quality and pressure requirements
• Drainage system design and installation standards
• Trap seal protection and maintenance
• Venting system requirements
• Cleanout accessibility and specifications
• Slope and flow requirements for drainage

For C-36 exam candidates, understanding these subsections means the difference between scoring 85% and 95% on Parts 2 and 3.

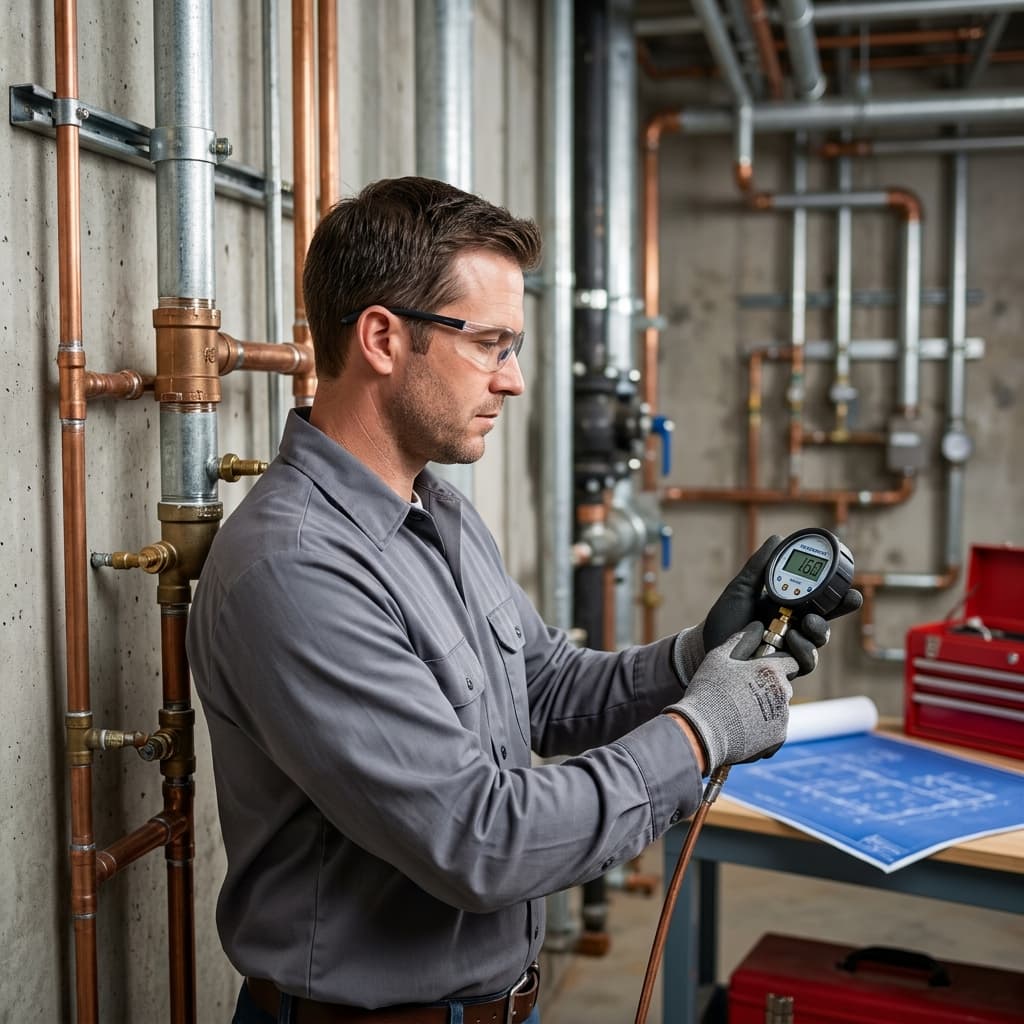

Part 1: Water Supply Requirements Under CPC Section 422

Water Pressure Standards (CPC 422.1)

California Plumbing Code Section 422.1 establishes specific water pressure requirements that protect fixtures and prevent damage to the water distribution system. This is a frequent exam question area.

Required Water Pressure Standards:

• Minimum pressure: 20 pounds per square inch (psi) at the point of use
• Maximum pressure: 80 psi under normal conditions
• Peak pressure limitation: 100 psi under transient conditions

Exam Tip: Questions often ask: "At what pressure must a pressure-reducing valve be installed?" The answer is when supply pressure exceeds 80 psi. This appears in roughly 8-10% of exam questions related to water supply.

Backflow Prevention Requirements (CPC 422.2)

Backflow prevention is absolutely critical for the C-36 exam. The California Plumbing Code mandates backflow prevention devices in specific scenarios:

When Backflow Prevention Is Mandatory:

• Connection between potable and non-potable water systems
• At points where hazardous substances could contaminate the public water supply
• Where reclaimed water systems are present
• At building service connections (in many jurisdictions)

Device Types by Hazard Level:

• High hazard (toxic substances): Reduced Pressure Principle (RPP) backflow preventer
• Moderate hazard (non-toxic contaminants): Double Check Valve Assembly (DCVA)

Exam Strategy: The CPC Section 422 backflow requirements often appear as scenario-based questions. You might be presented with a situation and asked to identify the correct backflow prevention device. Practice these scenarios extensively.

Water Quality and Supply Standards

Section 422 incorporates requirements from the California Code of Regulations Title 22 regarding water quality. The code specifies:

• All water supplied must be from an approved public water system or approved private source
• Water must meet California Department of Public Health standards
• Cross-connections between potable and non-potable systems are prohibited unless protected by approved backflow prevention

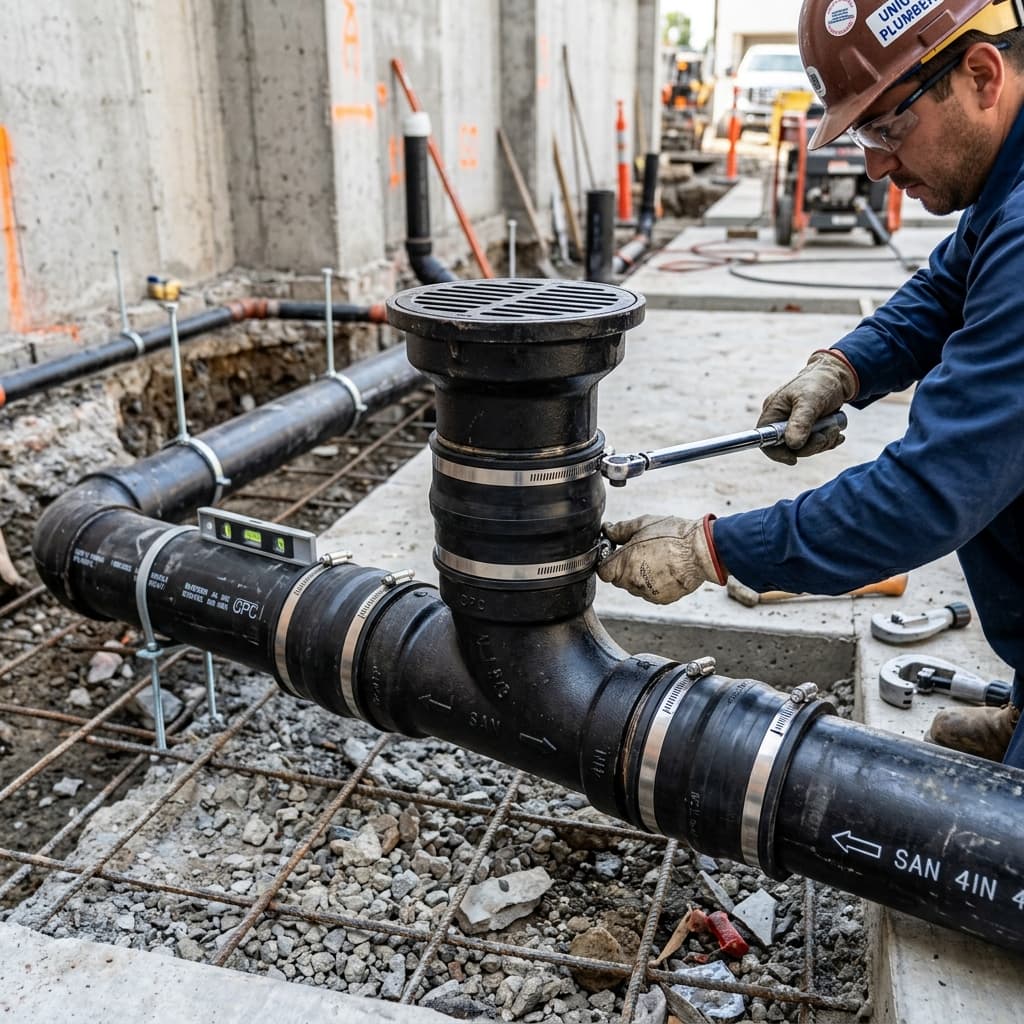

Part 2: Drainage System Requirements Under CPC Section 422

Drainage System Design Fundamentals (CPC 422.3)

Drainage requirements are extensively covered in Part 3 of the C-36 exam. Section 422.3 establishes the foundational principles:

Critical Design Principles:

• All drainage must be by gravity (except for specific ejector and sump pump applications)
• Drainage lines must have minimum slope of 1/4 inch per foot for pipes 3 inches and larger
• Drainage lines must have minimum slope of 1/2 inch per foot for pipes smaller than 3 inches
• No drainage system can rely on siphonage or momentum

Slope Violation Scenarios (Common Exam Questions):

An exam question might state: "A 4-inch drainage line was installed with a slope of 1/8 inch per foot. What code section is violated?" Answer: CPC 422.3 requires minimum 1/4 inch per foot slope for pipes 3 inches and larger.

Trap Seal Protection Requirements (CPC 422.4)

Trap seals are tested extensively on the C-36 exam because they're critical to preventing sewer gas from entering occupied spaces.

Trap Seal Depth Requirements:

• Minimum seal depth: 2 inches
• Maximum seal depth: 4 inches
• Exception: Traps serving urinals may have 1-inch seals if specifically designed

Common Violations Leading to Exam Questions:

1. Missing vent pipes - Allows trap seal to be siphoned or blown out
2. Improper venting - Prevents adequate air entry/exit
3. Trap seals exceeding 4 inches - Creates excessive trap arm friction

Exam Tip: When you see a question about why a trap seal failed, always think: "Is there proper venting?" Approximately 12-15% of drainage questions involve trap seal scenarios.

Venting System Requirements (CPC 422.5)

Proper venting is absolutely essential and represents a major exam focus area.

Primary Venting Functions:

• Admit air to drainage system
• Prevent trap seal loss through siphonage
• Prevent trap seal loss through blow-out
• Allow sewer gases to escape safely
• Maintain atmospheric pressure in drainage pipes

Venting System Components That Must Be Understood:

• Vent stacks: Vertical pipes carrying only vent gases
• Vent branches: Horizontal and vertical pipes connecting to the vent stack
• Circuit vents: Vent a group of fixtures on a horizontal branch
• Individual vents: Vent a single trap
• Island vents: Serve island sink configurations

Critical Exam Concept: Island fixtures present special venting challenges. The standard method requires a vent loop installed at least 6 inches above the fixture's highest possible water level. This is tested frequently on Part 3 exams.

Cleanout Requirements (CPC 422.6)

Cleanouts are more than just access points—they're safety requirements mandated by Section 422.6.

Mandatory Cleanout Locations:

• At each change of direction greater than 45 degrees
• At each change in pipe size
• At the base of each vertical vent stack
• At intervals not exceeding 100 feet in horizontal runs
• At the building drain serving the building

Cleanout Size Requirements:

• Minimum size: Equal to the pipe diameter or 4 inches, whichever is larger
• Maximum size: Cannot exceed pipe diameter by more than 1/2 inch

Exam Question Pattern: "Where is a cleanout required?" Questions test your understanding of specific locations. Expect 3-5 questions of this type on Part 3.

Common CPC Code Violations on the Exam

Understanding common violations helps you recognize incorrect installations when presented as exam scenarios.

Violation #1: Inadequate Water Pressure Regulation

The Scenario: A residential installation receives 95 psi from the municipal supply with no pressure-reducing valve installed. The Violation: Exceeds maximum 80 psi requirement under CPC 422.1 The Consequence: Potential fixture damage, increased water hammer, possible burst pipes The Exam Answer: A pressure-reducing valve set to 60-75 psi must be installed at the service entrance

Violation #2: Missing Backflow Prevention on Hazardous Connection

The Scenario: A building with a reclaimed water system is connected to the potable supply without any backflow prevention device. The Violation: CPC 422.2 backflow prevention requirement ignored The Consequence: Potential contamination of public water supply The Exam Answer: Reduced Pressure Principle (RPP) backflow preventer must be installed

Violation #3: Insufficient Drainage Slope

The Scenario: A 3-inch waste line is installed with 1/8-inch per foot slope. The Violation: CPC 422.3 requires minimum 1/4 inch per foot The Consequence: Waste accumulation, drainage backup, potential fixture overflow The Exam Answer: Line must be reinstalled at proper slope or replaced with larger diameter pipe

Violation #4: Undersized or Improper Venting

The Scenario: An island sink is vented with a 1-inch vent line extending directly to the exterior wall, with no trap vent or loop. The Violation: CPC 422.5 venting requirements not met The Consequence: Trap seal loss, sewer gas intrusion, potential fixture failure The Exam Answer: Proper vent loop or wet venting arrangement required

Violation #5: Trap Seal Depth Exceeding Maximum

The Scenario: A floor drain is installed with a 6-inch trap seal depth. The Violation: CPC 422.4 maximum seal depth is 4 inches The Consequence: Increased friction, slow drainage, potential seal evaporation The Exam Answer: Trap must be replaced with proper 2-4 inch seal depth

Study Strategies for CPC Section 422 Exam Success

Strategy 1: Create Section Mapping

Develop a visual map showing:

• Water supply requirements (left side)
• Drainage requirements (right side)
• Where they intersect (backflow prevention, connections)

This helps your brain organize the information logically.

Strategy 2: Practice Scenario-Based Questions

Section 422 is tested through scenarios more than any other section. Use these practice approaches:

• Study 10-15 violation scenarios weekly
• Identify the specific code section violated
• Explain the consequence
• Determine the correction method

Strategy 3: Learn the "Why" Behind Requirements

Don't just memorize that slope must be 1/4 inch per foot. Understand:

• Why (drainage velocity and waste transport)
• What happens if violated (accumulation and backup)
• How to correct it (reinstallation or pipe upsizing)

Strategy 4: Focus on Pressure and Slope Numbers

These numerical requirements appear constantly:

• Water pressure: 20-80 psi normal, max 100 psi transient
• Drainage slope (3"+ pipes): 1/4 inch per foot minimum
• Drainage slope (<3" pipes): 1/2 inch per foot minimum
• Trap seal depth: 2-4 inches
• Vent distances: 6 inches for island vent loops

Strategy 5: Cross-Reference Related Sections

Section 422 doesn't exist in isolation. Connect it to:

• CPC Section 308 (Materials) - What pipes you use for drainage
• CPC Section 606 (Backflow Prevention) - Detailed device requirements
• CPC Section 608 (Traps) - Trap installation details
• CPC Section 609 (Vents) - Detailed venting requirements

Exam Day Preparation Checklist

Before your C-36 exam, ensure you can:

• [ ] Identify the minimum and maximum water pressure requirements without hesitation
• [ ] Determine the correct backflow prevention device for any hazard scenario
• [ ] Calculate proper drainage slope for any pipe diameter
• [ ] Explain why trap seals fail and how to prevent it
• [ ] Design a proper venting system for island fixtures
• [ ] Identify all required cleanout locations in a drainage system
• [ ] Spot at least 5 common Section 422 violations in presented scenarios
• [ ] Explain the consequence of each common violation
• [ ] Determine the correct remediation for violation scenarios

Final Thoughts: Section 422 Mastery

California Plumbing Code Section 422 is demanding but absolutely learnable. The key to success is moving beyond memorization to genuine understanding of the "why" behind each requirement.

When you understand that the 1/4-inch-per-foot slope requirement exists to maintain proper drainage velocity, you won't forget it. When you comprehend that trap seals protect health by preventing sewer gas intrusion, venting requirements become logical rather than arbitrary.

Dedicate focused study time to Section 422, practice scenario-based questions religiously, and approach your C-36 exam with confidence. The candidates who pass consistently are those who mastered the foundational sections like 422.

Good luck with your exam preparation—you've got this!
