# CPC Section 422: Hot Water System Design and Temperature Control Requirements for C-36 Exam Success

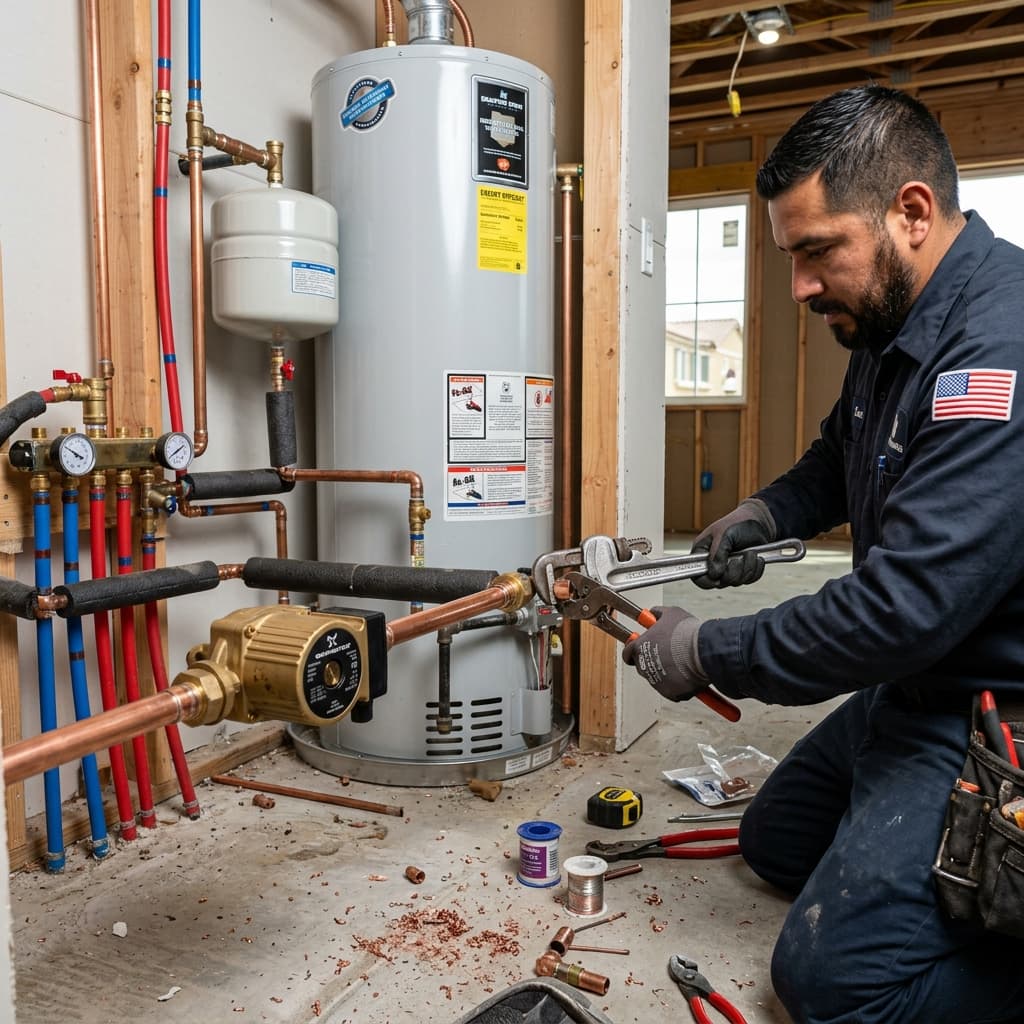

Introduction: Mastering Hot Water System Design for the C-36 Plumbing Exam
The California Plumbing Code Section 422 establishes comprehensive requirements for hot water system design and temperature control that every aspiring C-36 license holder must master. As one of the most heavily tested sections in Part 5: Water Supply and Distribution, understanding CPC Section 422 hot water system design requirements directly impacts your exam performance.
Hot water systems represent one of the most critical components of residential and commercial plumbing installations. Improper design, sizing, or temperature control can result in code violations, system failures, and safety hazards. This comprehensive guide breaks down every essential requirement from CPC Section 422, providing the practical knowledge you need to pass the C-36 exam and design compliant systems in real-world applications.

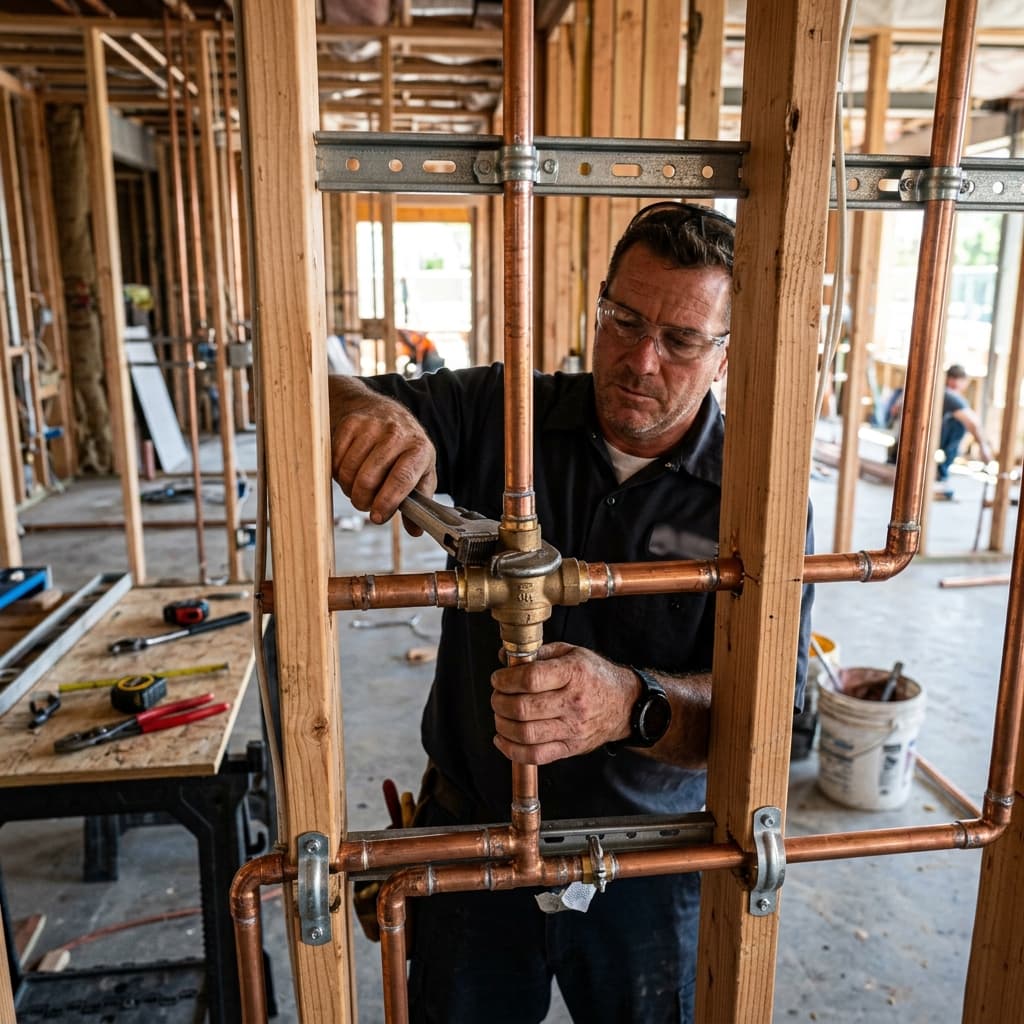

Understanding CPC Section 422: Overview and Scope
What CPC Section 422 Covers
CPC Section 422 addresses all aspects of hot water supply systems, establishing minimum standards for:
- Hot water demand calculations and sizing methodologies
- Storage tank capacity requirements and selection
- Temperature control device specifications and installation
- Pressure relief and safety valve requirements
- Expansion tank sizing and installation
- Distribution piping requirements
- System commissioning and testing procedures
Exam-Specific Focus Areas
On the C-36 exam, Section 422 questions typically focus on:
- Calculating hot water demand based on occupancy and fixture counts
- Determining appropriate storage tank sizes
- Understanding mixing valve temperature requirements
- Identifying pressure relief valve specifications
- Recognizing compliance violations in system designs

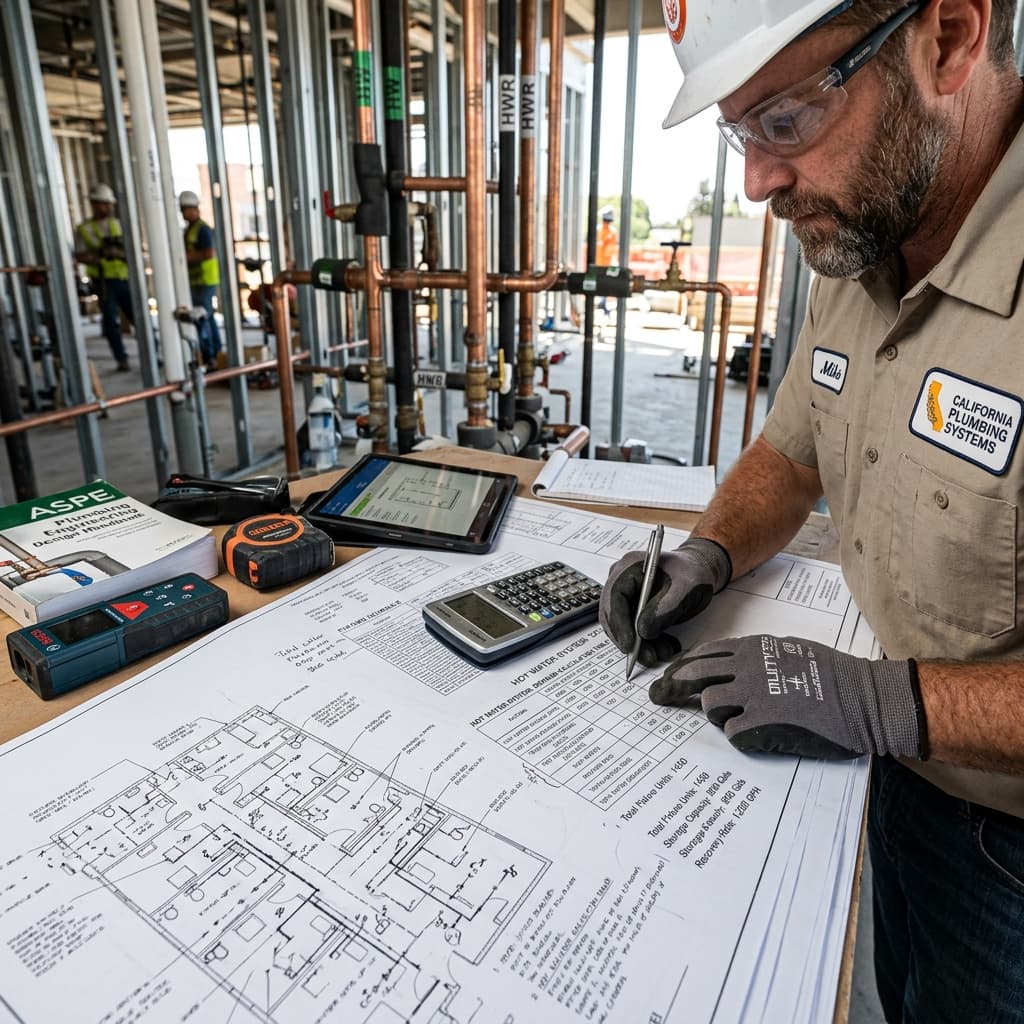

Hot Water Demand Calculations: The Foundation of System Design
Calculating Hot Water Demand
Before you can size any hot water system, you must calculate the actual demand. CPC Section 422.1 requires demand calculations based on occupancy and fixture usage patterns. The code provides specific demand values for different building types and fixture categories.
Residential Hot Water Demand (per CPC Table 422.1):- Dwelling units: 20-30 gallons per person per day
- Hotels/Motels: 35-50 gallons per room per day
- Hospitals: 40-60 gallons per bed per day
- Office buildings: 0.4 gallons per person per day
Total Daily Demand (GPD) = Number of Occupants × Demand per Occupant
Total Daily Demand = 6 people × 25 GPD = 150 GPD
Peak Hour Demand vs. Daily Demand
Exam candidates frequently confuse peak hour demand with daily demand. CPC Section 422 requires systems sized to meet peak hour demand, not average daily demand. Peak hour demand typically represents 25-40% of daily demand occurring within a 1-hour period.Peak hour demand calculation:
Peak Hour Demand (GPH) = Total Daily Demand × Peak Hour Percentage
Peak Hour Demand = 150 GPD × 0.33 = 49.5 GPH (approximately 50 GPH)
This distinction is critical because undersizing based on daily demand rather than peak demand results in code violations and customer dissatisfaction.
Storage Tank Sizing Requirements
Determining Appropriate Tank Capacity
CPC Section 422.2 establishes storage tank capacity based on the relationship between peak hour demand and system recovery rate. The formula balances immediate hot water availability with the water heater's ability to reheat water.
Storage Tank Sizing Formula:Tank Size (gallons) = Peak Hour Demand (GPH) × Time Factor / Recovery Rate
Understanding Recovery Rate
Recovery rate represents how many gallons per hour the water heater can heat from cold inlet temperature to the required delivery temperature. Recovery rates vary by:
- Fuel source (gas, electric, solar, heat pump)
- BTU input capacity
- Efficiency rating
- Gas water heaters: 30-50 GPH
- Electric water heaters: 2-5 GPH
- Tankless systems: Unlimited (instantaneous)
Practical Sizing Example
A commercial office building requires 200 GPH peak demand. The selected gas water heater has a 40 GPH recovery rate. What minimum tank size is required?
Tank Size = 200 GPH × 1.5 (time factor) / 40 GPH = 7.5 × 1.5 = 7.5 gallons minimum
In practice, you would select the next standard size (typically 75-100 gallons for this application).
Temperature Control Requirements Under CPC Section 422
Mandatory Temperature Delivery Standards
CPC Section 422.3 establishes specific temperature requirements for hot water delivery to prevent scalding injuries while maintaining adequate temperature for sanitation purposes.
Required Delivery Temperatures (per CPC Section 422.3):- Residential occupied spaces: 110°F minimum, 120°F recommended
- Public bathrooms and hand-washing sinks: 105-110°F
- Showers and bathtubs: Not to exceed 120°F
- Commercial kitchens: 180°F minimum for sanitization
Thermostatic Mixing Valve Requirements
CPC Section 422.3 mandates thermostatic mixing valves (TMV) in specific applications:
Where TMVs Are Required:- All outlets serving bathtubs or showers in residential units
- Public bathing facilities
- Healthcare facilities (hospitals, assisted living)
- Any installation where scalding risk exists
- Pressure-balanced or thermostatic design minimum
- Maximum outlet temperature: 120°F (adjustable)
- Anti-scald protection response time: Less than 3 seconds
- Flow rate: Minimum 2 GPM
Anti-Scald Device Installation
Proper TMV installation directly impacts code compliance and safety. Critical installation points include:
- Location: Install as close as practical to the hot water source
- Orientation: Install per manufacturer specifications (typically valve body upright)
- Inlet Connections: Hot water inlet must be connected to the hot port
- Cold Water Supply: Must remain accessible for pressure balancing
- Discharge: Set and sealed to maximum 120°F for residential applications
Pressure Relief and Safety Valve Requirements
Pressure Relief Valve Specifications
CPC Section 422.4 requires pressure relief protection on all hot water storage tanks. Relief valves prevent dangerous pressure buildup that could damage tanks or create explosion hazards.
Pressure Relief Valve Requirements:- Setting: Maximum 150 PSI for residential systems
- Capacity: Must exceed system input capability
- Accessibility: Must be accessible for inspection and servicing
- Discharge: Must drain to appropriate termination point
Relief Valve Sizing Calculation
Relief valve capacity must equal or exceed the input rate of the heating element:
Relief Valve Capacity (GPM) ≥ Heat Input (BTU/hr) / Temperature Rise × 60 / 8.33
Relief Valve Capacity = 40,000 / 70 × 60 / 8.33 = 41.1 GPM minimum
Temperature and Pressure Relief Valves
For added protection, CPC Section 422.4 permits combined temperature and pressure (T&P) relief valves. These devices provide dual protection:- Temperature setting: 210°F maximum
- Pressure setting: 150 PSI maximum
Expansion Tank Design and Installation
Understanding Thermal Expansion
As water heats, it expands. In closed systems without expansion accommodation, pressure increases dangerously. CPC Section 422.5 requires expansion tanks to absorb this volume increase.
Thermal Expansion Volume Calculation:Expansion Volume (gallons) = Tank Volume × 0.04 × Temperature Rise / 100
For a 50-gallon tank heating from 60°F to 140°F (80°F rise):
Expansion Volume = 50 × 0.04 × 80 / 100 = 1.6 gallons
Expansion Tank Sizing
Select the next standard size larger than calculated expansion volume. For the example above, use a 2-gallon expansion tank minimum.
Expansion Tank Installation Requirements:- Install on cold water line upstream of water heater
- Pre-charge air pressure to inlet temperature of water heater
- Provide isolation valve and drain capability
- Ensure tank is ASME-certified for potable water service
Distribution Piping Considerations
Hot Water Distribution System Design
CPC Section 422.6 addresses distribution requirements to ensure adequate hot water delivery throughout buildings. The code recognizes two distribution approaches:
Dead Leg Method (Standard):- Maximum 50 feet of uninsulated pipe from heater to farthest fixture
- Maximum 100 feet of insulated pipe (R-3 or greater insulation)
- Acceptable for smaller buildings with concentrated hot water demand
- Return line to water heater with circulation pump
- Maintains hot water availability throughout building
- Reduces water waste and energy consumption
- Typical for commercial buildings and large residences
Piping Material and Support
Per CPC Chapter 6 coordination with Section 422:- Copper, PEX, or approved plastic materials acceptable
- Support every 4 feet for horizontal runs
- Support every 6 feet for vertical runs
- Maintain minimum pitch (1/8 inch per 10 feet) on return lines
Common C-36 Exam Questions on Section 422
Question Type 1: Demand Calculation
Example Question: "A 6-unit apartment building houses an average of 3 occupants per unit. Using the demand values from CPC Section 422, what is the peak hour hot water demand?" Solution:- Total occupants: 6 units × 3 = 18 people
- Daily demand: 18 × 25 GPD = 450 GPD
- Peak hour demand: 450 × 0.33 = 148.5 GPH (round to 150 GPH)
Question Type 2: Tank Sizing
Example Question: "A commercial kitchen requires 300 GPH peak demand. The selected gas water heater provides 45 GPH recovery. Minimum tank size required?" Solution:- Tank size = 300 × 1.5 / 45 = 10 gallons minimum
- Select standard size: 100-gallon tank (code safety margin)
Question Type 3: Mixing Valve Requirements
Example Question: "In a residential bathroom, what is the maximum permissible water temperature at a shower outlet per CPC Section 422?" Answer: 120°F maximum (established by CPC Section 422.3)Question Type 4: Relief Valve Specifications
Example Question: "What is the maximum pressure setting for a relief valve on a residential hot water storage tank per CPC Section 422?" Answer: 150 PSI maximum (per CPC Section 422.4)Study Tips for Mastering Section 422
Create a Sizing Worksheet
Develop a laminated reference worksheet with key formulas:
QUICK REFERENCE - CPC SECTION 422 FORMULAS
Peak Hour Demand (GPH) = Daily Demand (GPD) × 0.33
Tank Size = Peak Hour Demand × Time Factor / Recovery Rate
Expansion Volume = Tank Volume × 0.04 × Temp Rise / 100
Relief Capacity (GPM) = BTU Input / Temp Rise × 60 / 8.33
Practice Real-World Applications
The C-36 exam emphasizes practical application. Work through residential and commercial scenarios:
- Single-family homes (40-50 gallons)
- Multi-unit apartments (100-150 gallons)
- Commercial buildings (200+ gallons)
- Healthcare facilities (special temperature requirements)
Cross-Reference Related Sections
Section 422 intersects with other code sections:- CPC Chapter 3: General Requirements for approval processes
- CPC Section 308: Referenced Standards for material specifications
- CPC Chapter 6: Water Supply and Distribution for piping standards
Section 422 vs. Industry Standards
Code vs. Best Practices
While CPC Section 422 establishes minimum requirements, industry best practices often exceed code:
- Code requirement: 110°F minimum delivery temperature
- Best practice: 120°F consistent delivery for comfort and sanitation
- Code requirement: 150 PSI relief setting maximum
- Best practice: 110-125 PSI typical residential systems
Conclusion: Mastering Section 422 for Exam Success
CPC Section 422 hot water system design and temperature control requirements represent essential knowledge for C-36 exam success. By mastering demand calculations, tank sizing, temperature control specifications, and safety requirements, you'll be well-prepared for Part 5 questions.
Key takeaways to remember:
- Always calculate peak hour demand, not daily average demand
- Temperature control devices are mandatory for bathtubs and showers in residential applications
- Relief valves are non-negotiable safety devices on all storage tanks
- Expansion tanks prevent dangerous pressure buildup in closed systems
- Distribution design directly impacts code compliance and customer satisfaction
---
