# CPC Section 403: Complete Drainage System Design and Sanitary Sewer Sizing for C-36 Exam

Understanding CPC section 403 drainage system requirements is critical for passing the California C-36 plumbing exam. This comprehensive section governs how plumbers size sanitary sewers, building drains, and horizontal drainage piping to safely convey wastewater from fixtures to municipal sewers or septic systems. Whether you're a first-time exam taker or a retesting candidate, mastering these calculations will directly impact your Part 2 score.

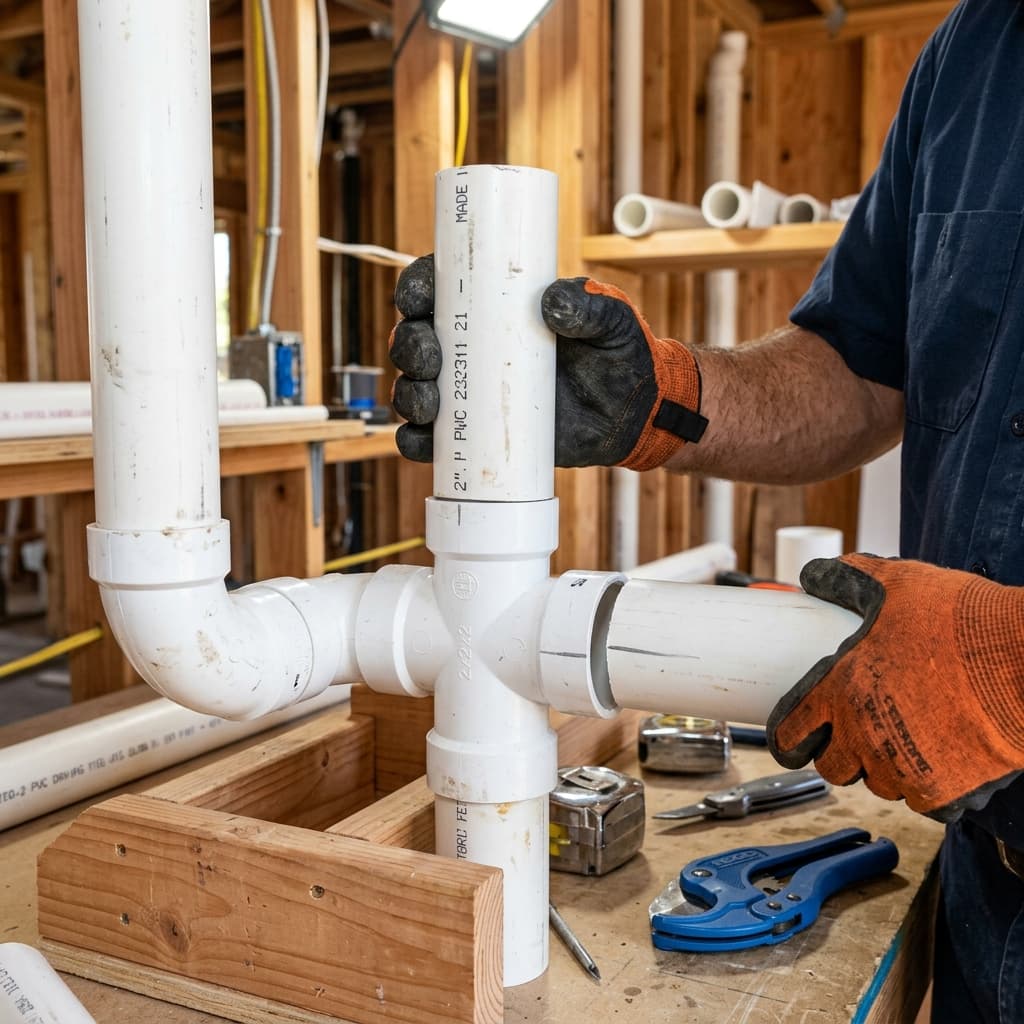

What is CPC Section 403?

CPC Section 403 establishes the complete sizing methodology for drainage systems throughout residential and commercial buildings. Unlike water supply systems that operate under pressure, drainage systems rely on gravity flow and proper slope to function effectively. Section 403 provides the tables, formulas, and minimum requirements that determine pipe diameter, material selection, and system configuration.

The section covers three primary drainage components:

• Building drains – the main horizontal pipe receiving waste from all fixtures
• Sanitary sewers – building drains that extend beyond the building foundation
• Horizontal drainage piping – all drainage pipes running at slopes less than 45 degrees

Understanding Plumbing Fixture Unit Calculations

Before sizing any drainage system, you must convert fixtures to drainage fixture units (DFU). This standardized measurement allows engineers to calculate total wastewater volume mathematically rather than estimating based on individual fixture types.

Drainage Fixture Unit Conversion Table (CPC Table 422.1)

The California Plumbing Code provides standardized DFU values for common fixtures:

| Fixture Type | Drainage Fixture Units | |--------------|----------------------| | Lavatory | 1 | | Kitchen sink (single) | 2 | | Kitchen sink (double) | 3 | | Shower stall | 2 | | Bathtub (with/without shower) | 2 | | Floor drain | 1 | | Toilet (water closet) | 3 | | Urinal | 1 | | Washing machine | 2 | | Laundry tub | 2 |

Exam Tip: Memorize these common fixture units. At least 3-4 exam questions will require you to calculate total DFU loads for a building project.

Sample Calculation: Single-Story Residence

Let's calculate the drainage load for a typical 3-bedroom home:

• Master bathroom: toilet (3) + bathtub (2) + lavatory (1) = 6 DFU
• Guest bathroom: toilet (3) + shower (2) + lavatory (1) = 6 DFU
• Powder room: toilet (3) + lavatory (1) = 4 DFU
• Kitchen: double sink (3) + floor drain (1) = 4 DFU
• Laundry room: washing machine (2) + laundry tub (2) = 4 DFU

Total: 24 Drainage Fixture Units

This total load determines the required building drain diameter under CPC Section 403.

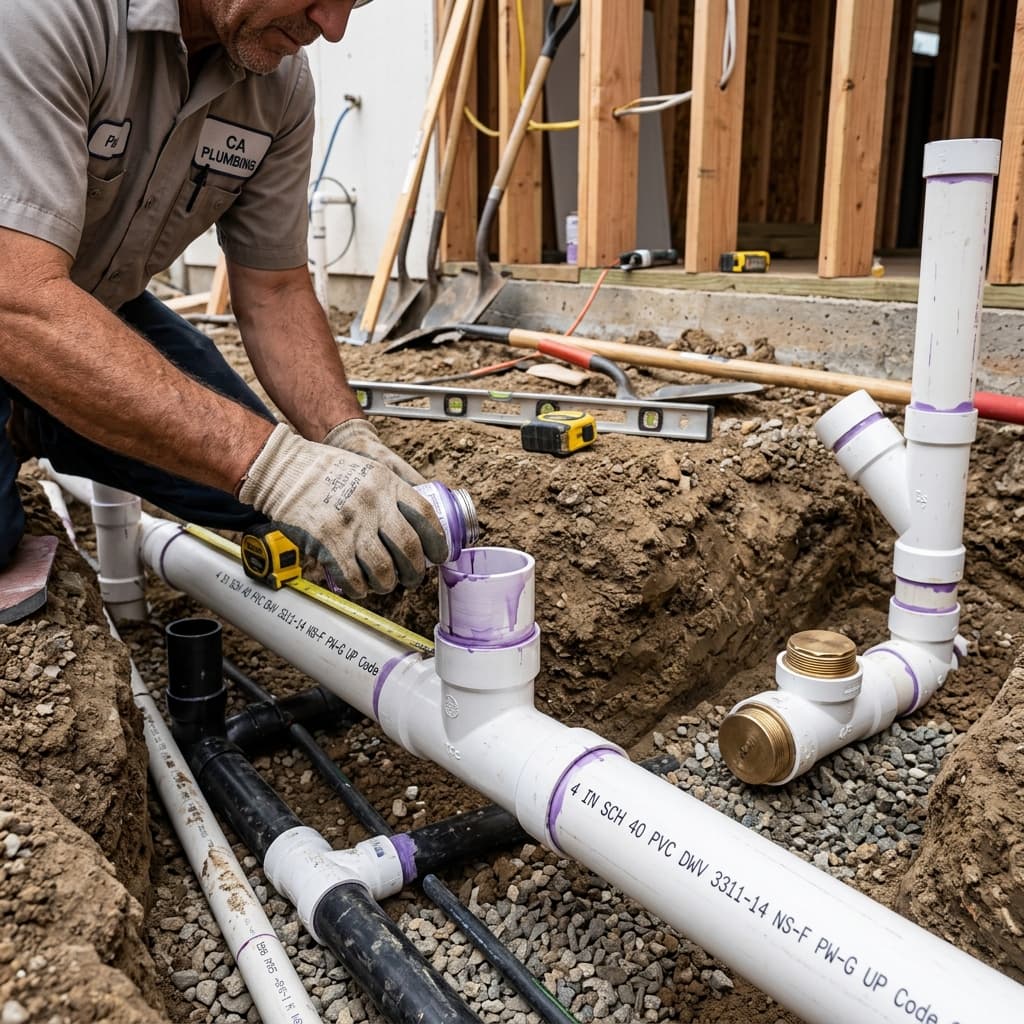

Building Drain Sizing Requirements

CPC Section 403.2 addresses building drain sizing specifically. The building drain is the main wastewater collection pipe that receives discharge from all fixture branches and typically slopes toward the municipal connection.

Minimum Slope Requirements (CPC 403.2)

All building drains must maintain adequate slope for proper drainage:

• Minimum slope: 1/4 inch per linear foot (most common requirement)
• Maximum slope: 3 inches per linear foot
• Preferred slope for large systems: 1/2 inch per linear foot

The 1/4-inch minimum slope ensures solids remain suspended in wastewater rather than settling in pipes. Insufficient slope causes blockages; excessive slope separates solids from water.

Building Drain Diameter Based on DFU Load (CPC Table 403.2)

| Pipe Diameter (inches) | Maximum DFU Load | Required Slope | |----------------------|-----------------|-----------------| | 2 | 21 | 1/4" per foot | | 3 | 53 | 1/4" per foot | | 4 | 216 | 1/8" per foot | | 5 | 540 | 1/8" per foot | | 6 | 960 | 1/8" per foot | | 8 | 2,300 | 1/8" per foot |

Exam Application: If your calculated fixture units equal 65 DFU, you cannot use 3-inch pipe (53 DFU maximum). You must upgrade to 4-inch diameter pipe.

Sanitary Sewer Sizing Calculations

The sanitary sewer sizing california methodology applies when the building drain extends beyond the building foundation as a sanitary sewer line. These calculations follow similar principles but account for additional factors like future building expansion and maintenance requirements.

CPC Section 403.3: Sanitary Sewer Requirements

Sanitary sewers conveying wastewater from buildings must comply with these specifications:

1. Minimum pipe diameter: 4 inches
2. Minimum slope: 1/4 inch per linear foot
3. Cleanouts: Installed every 50 feet and at direction changes
4. Separation distances: Minimum 10 feet from water supply lines

The 4-inch minimum diameter requirement for sanitary sewers exceeds building drain requirements because sanitary sewers often serve multiple buildings and require maintenance access.

Calculating Sanitary Sewer Size for Multi-Building Projects

For commercial properties or developments, accumulate all connected DFU loads:

Example: Strip Mall with 4 Tenants

• Restaurant: 120 DFU
• Retail shop: 35 DFU
• Office suite: 45 DFU
• Coffee shop: 50 DFU

Total: 250 DFU

Referencing CPC Table 403.2, a 4-inch sanitary sewer accommodates up to 216 DFU. Since 250 DFU exceeds this capacity, upgrade to 5-inch diameter pipe (540 DFU capacity).

Drainage Pipe Diameter Requirements by Application

Understanding when specific drainage pipe diameter requirements apply prevents common exam mistakes.

Horizontal Drainage Piping (CPC 403.4)

Horizontal drainage pipes carrying wastewater from individual fixtures or fixture groups must be sized using drainage fixture unit loads:

Single Fixture Branch Sizing:

• Toilet waste line: minimum 3-inch diameter
• Kitchen sink waste: minimum 1.5-inch diameter
• Lavatory waste: minimum 1.25-inch diameter
• Shower drain: minimum 2-inch diameter

Multi-Fixture Branches: Use CPC Table 403.2 to size branch lines accumulating multiple fixtures. A 2-inch branch line accommodating 3 lavatories (3 DFU) is acceptable; however, adding a toilet (3 DFU total = 6 DFU) requires upgrading to 3-inch diameter.

Stack Sizing (Vertical Drainage Piping)

Drainage stacks must handle peak flow from multiple floor levels simultaneously:

| Stack Diameter | Maximum DFU (Single Stack) | Maximum DFU (Multiple Stacks) | |----------------|---------------------------|------------------------------| | 2 | 10 | 8 | | 3 | 30 | 27 | | 4 | 240 | 200 | | 5 | 540 | 500 | | 6 | 960 | 860 |

Exam Insight: Stack sizing differs from horizontal pipe sizing because vertical flow dynamics change. A 3-inch vertical stack handles 30 DFU, but a 3-inch horizontal pipe handles only 53 DFU before requiring an increase.

Common Drainage System Design Mistakes to Avoid

Mistake #1: Insufficient Slope Calculations

Many candidates fail to verify slope mathematically. If a building drain runs 48 feet from fixtures to the municipal connection with 1/4-inch-per-foot slope requirement:

Required elevation drop = 48 feet × (1/4 inch/foot) = 12 inches

Verify the actual grade permits this drop. If the site allows only 8 inches of drop, you cannot achieve required slope with that route and must redesign the system.

Mistake #2: Neglecting Future Load Capacity

CPC Section 403 permits sizing drains for future expansions. If a restaurant has only 80 DFU currently but plans to add bathrooms within 5 years (projected 120 DFU), size the building drain for 120 DFU now using 4-inch pipe rather than 3-inch.

Mistake #3: Misapplying Fixture Unit Values

Some candidates confuse drainage fixture units (used for sizing drains) with supply fixture units (used for water supply sizing). These values differ significantly. A toilet requires 3 DFU for drainage but only 1.0 fixture unit for water supply.

CPC Section 403 Exam Questions: What to Expect

Part 2 of the C-36 exam typically includes 4-6 questions directly related to CPC Section 403:

Question Type 1: Fixture Unit Calculations "A residential bathroom contains one toilet, two lavatories, and one bathtub with shower. What is the total drainage fixture unit load?"

• Answer: 3 + 1 + 1 + 2 = 7 DFU

Question Type 2: Pipe Diameter Selection "A building drain serves 95 drainage fixture units. What minimum pipe diameter is required?"

• Answer: 4-inch (216 DFU capacity exceeds 95 DFU requirement)

Question Type 3: Slope Requirement Applications "A sanitary sewer must drop 18 inches over 72 feet. Does this meet the 1/4-inch-per-foot minimum slope requirement?"

• Answer: 18 inches ÷ 72 feet = 0.25 inches per foot = exactly 1/4 inch per foot. Yes, requirement met.

Question Type 4: Scenario-Based Compliance "What is the minimum diameter sanitary sewer required to serve a 4-story office building with 280 total drainage fixture units?"

• Answer: 5-inch (540 DFU capacity accommodates 280 DFU)

Critical Code References for Study

Bookmark these specific CPC Section 403 citations for exam preparation:

• CPC 403.1 – General drainage requirements and definitions
• CPC 403.2 – Building drain sizing table and slope requirements
• CPC 403.3 – Sanitary sewer requirements
• CPC 403.4 – Horizontal drainage piping
• CPC Table 403.2 – Pipe diameter sizing table (essential memorization)
• CPC Table 422.1 – Drainage fixture unit values

Study Strategy for CPC Section 403 Mastery

Week 1: Foundation

• Read CPC Section 403 completely
• Memorize Table 422.1 fixture unit values
• Understand slope requirement reasoning

Week 2: Calculations

• Practice 20+ fixture unit calculations
• Work through 15+ pipe sizing problems
• Master slope verification calculations

Week 3: Application

• Complete practice exam questions
• Review incorrect answers thoroughly
• Refine calculation speed

Week 4: Exam Simulation

• Take full Part 2 practice exams
• Time yourself on calculation questions
• Identify remaining weak areas

Final Exam Tips

1. Always show your work – Partial credit may apply if your calculation method is correct but final answer contains arithmetic error

1. Double-check fixture unit totals – Recalculate accumulations; 50% of calculation errors occur here

1. Verify slope mathematically – Don't estimate; calculate elevation drop divided by horizontal distance

1. Reference the code tables – Bring the CPC to the exam; confirm all pipe sizing using official tables

1. Watch for trap questions – Some questions provide extra information or ask for minimum requirements when maximum is obvious

CPC Section 403 mastery directly correlates with Part 2 exam passage. Invest study time in understanding drainage system design principles, not just memorizing answers. When you understand why 3-inch pipe accommodates 53 DFU while 4-inch accommodates 216 DFU, you'll confidently tackle variations presented on exam day.
